Liquid Line Filter Driers

Series	Description
EK Series	The EK Liquid Line filter drier is a premium compacted bead filter drier with a 20 micron outlet pad for maximum filtration. The EK is a premium universal replacement liquid line filter drier for CFC, HCFC, and HFC refrigerants including R-12, R-134a, R-22, R-404A, R-407C, R-410A, R-500, R-502, and R-507.

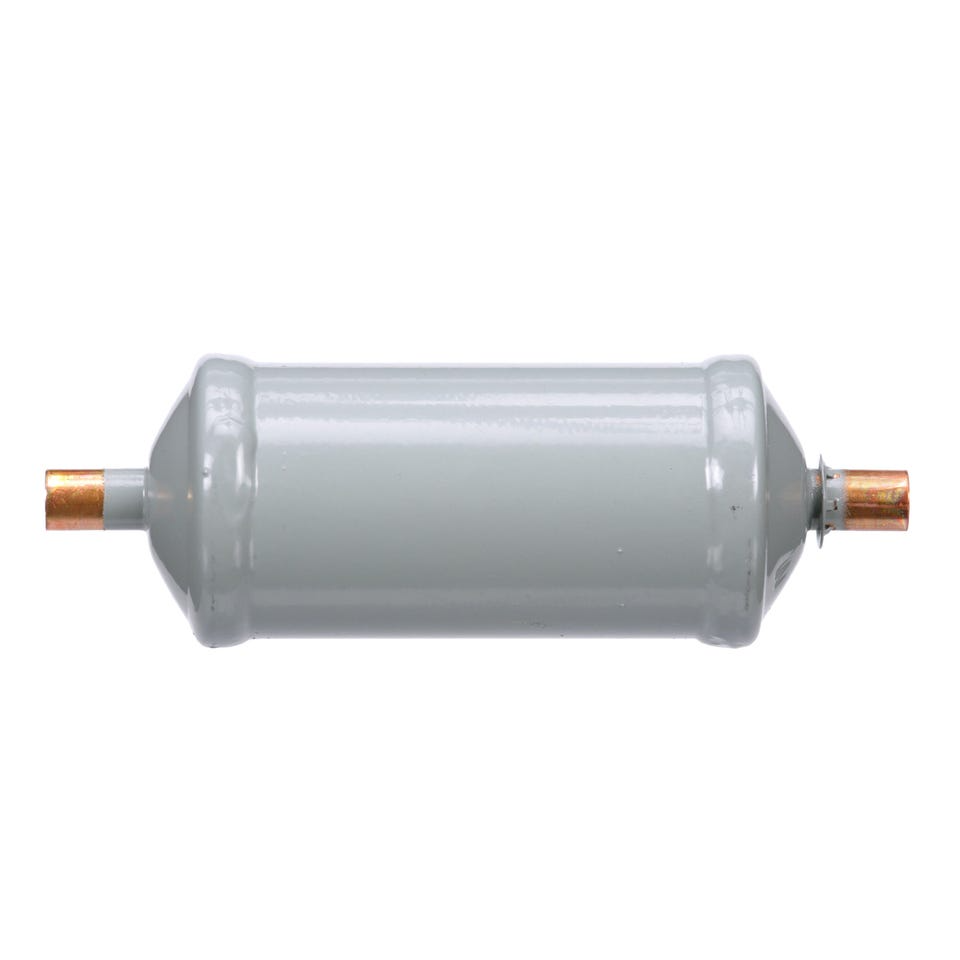

BSL Series	The Builder Series filter drier provides an economical system protection for air conditioning applications.
ADKS Series	The ADKS is a replaceable core filter drier for use in the liquid or suction line for very large commercial air conditioning and refrigerant systems.

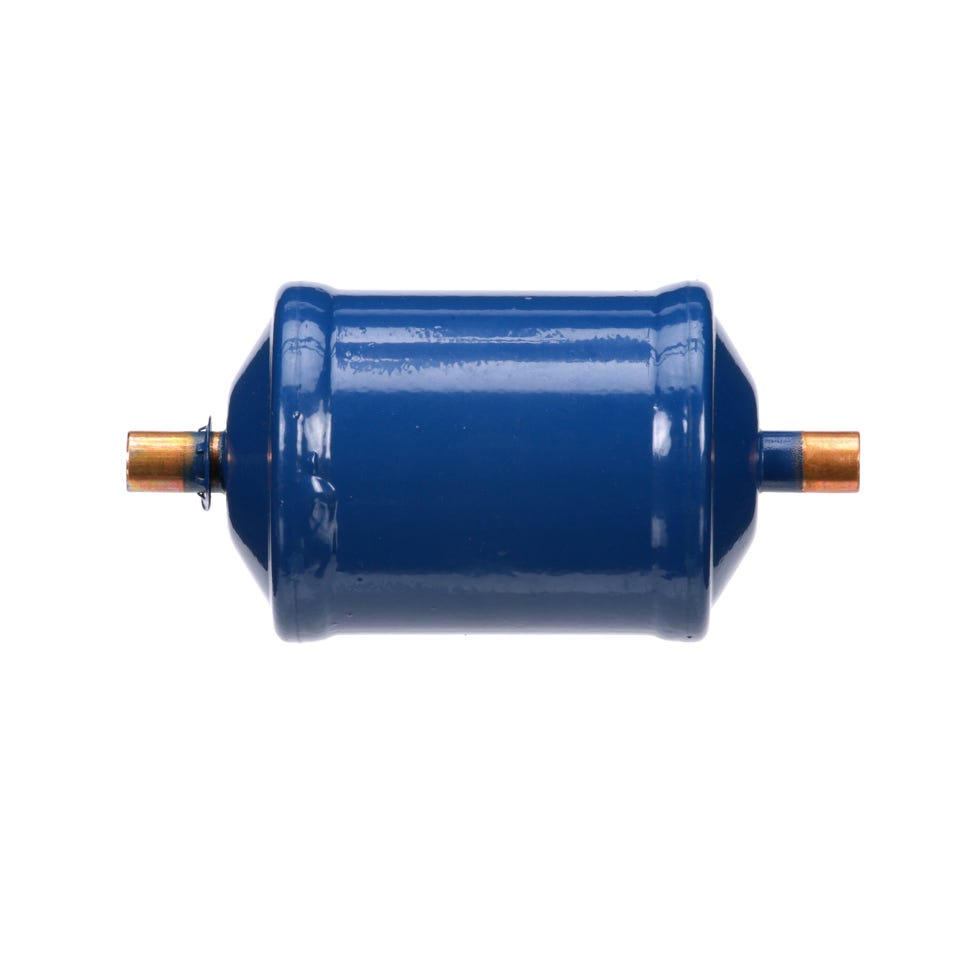

ADK Series	The ADK is a solid core liquid line filter drier good for use with CFC, HCFC, and HFC refrigerants.
BFK Series	The BFK is a solid core, bi-directional, liquid line filter drier for heat pump applications for use with CFC, HCFC, and HFC refrigerants.

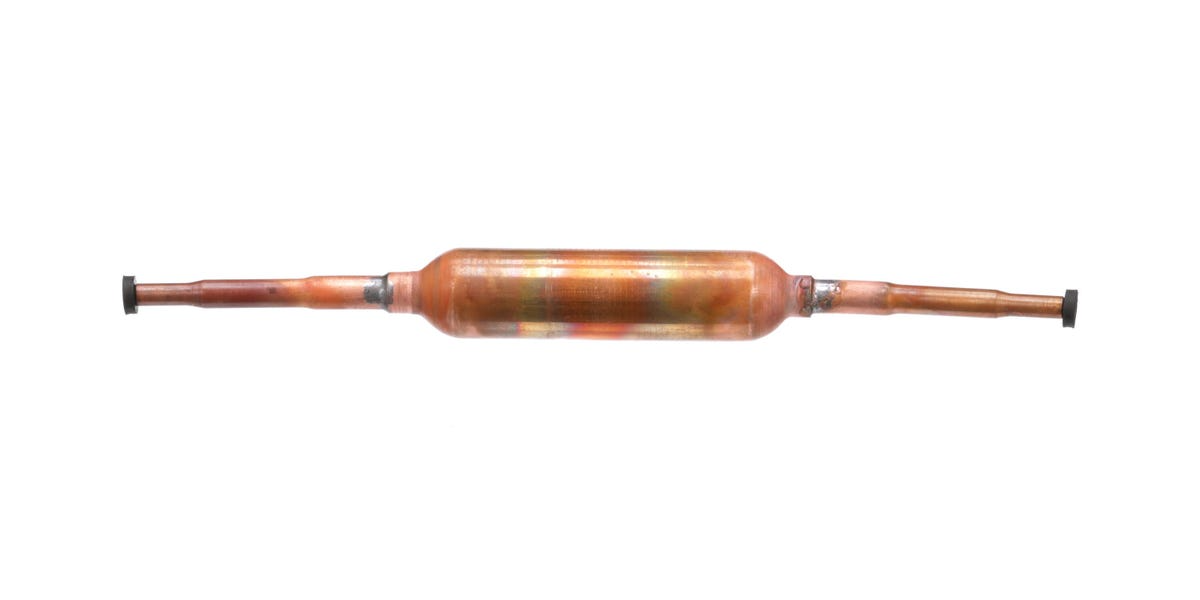

Spun Copper	Recommended for use in original equipment or replacement residential air-conditioning or refrigeration equipment.
STAS Series	The STAS is a replaceable core filter drier for CFC, HCFC, and HFC refrigerants for use in large commercial air conditioning and refrigeration systems. The STAS-CO is specifically designed for CO2 (R-744) systems.

Series	Features
BSL Builder	ODF – Solid copper connections for easy installation Compacted bead design 20 micron filtration Desiccant blend – optimized for high water and acid capacity
EK Series	Filtration first for more effective use of surface area of desiccant High moisture and acid removal capacity Solid copper connections Corrosion resistant epoxy powder paint finish Approved for POE oils with Copeland™ compressors Shock resistant steel shell construction
ADKS Series	Full flow fittings for low pressure drop Corrosion resistant epoxy powder paint finish Sturdy steel shells for long life durability
ADK Series	Desiccant Blend: optimized for high water capacity and acid capacity Filtration: 40 microns Maximum working pressure: 680 psig UL/CUL file number: SA 3124
STAS Series	Slotted cover/unique internal hardware for hassle-free installation Full flow fittings for low pressure drop Corrosion resistant epoxy powder paint finish Sturdy steel shells for long life Solid copper connections 100 mesh outlet screen
Spun Copper	All copper construction for extreme corrosion resistance 100% molecular sieve solid core drier For use with CFC, HCFC and HFC refrigerants
BFK Series	Available 5 to 30 cu. in. size Internal check valves allow flow and filtration in either direction, eliminates need for external check valves High moisture and acid removal capacity Corrosion resistant epoxy powder paint finish Approved for POE oils with Copeland™ compressors
